For Dimpled and Channel Jackets with standard 1" inlet.

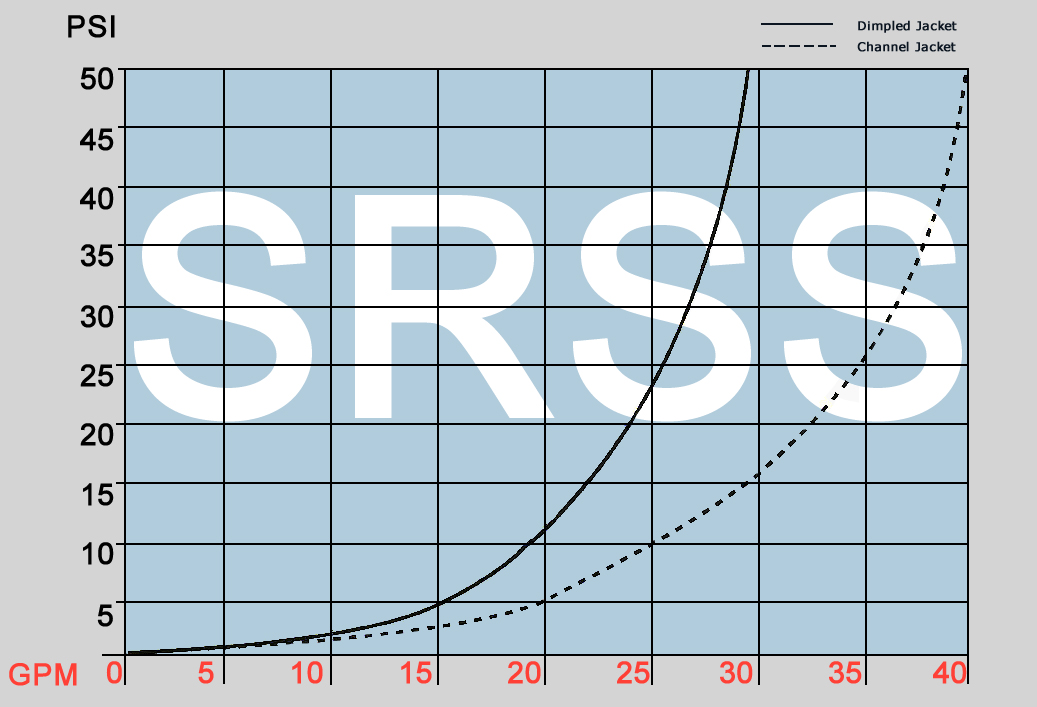

Solid line equals GPM/PSI in dimpled jacket.
Dotted line equals GPM/PSI in channel jacket.

Pressure drop across jacket equals 0.60 PSI per foot of diameter.

Coefficient "U" (BTU/HR/FT2/°F)
Not agitated equsl 35
