Tank Components

Each tank manufactured at our shop has multiple tank component options:

Manways

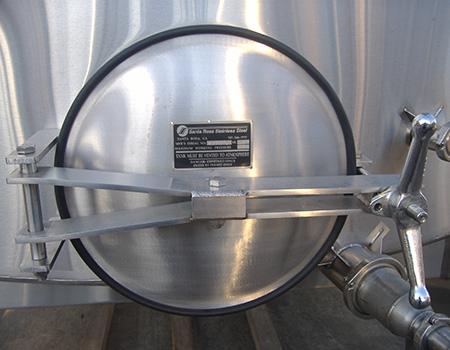

  • Top manway doors are available in 10″, 18″, 24″, 30″ and 36″ diameter sizes.  They open both vertically and swing side to side. An epdm gasket is also supplied.
  • Our round Full Drain bottom manway is 18″ in diameter and allows for the tank to be drained completely, it offers easy removal of pomace and is easy to crawl in and out of.  Comes with a full faced epdm gasket.  A rectangle Full Drain Manhole is also available.  It measures 16″ x 20″ and offers even more surface area for draining and pomace removal.

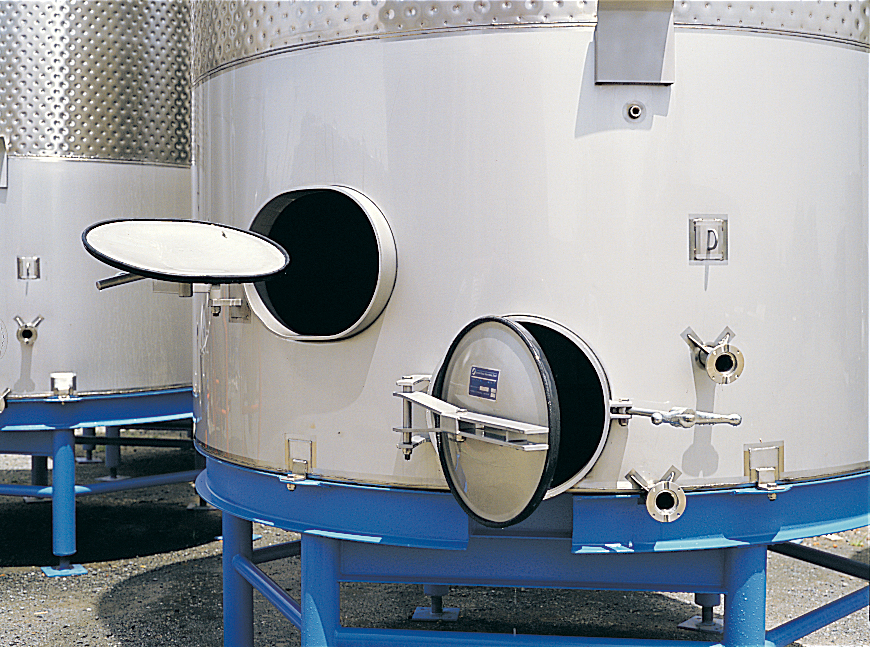

  • Dual action Oval doors are available in 16″ x 20″ size.  They swing inward, flip over, and swing out all the way outside the tank.  An epdm gasket is also supplied.

Odds and Ends

  • Removable CIP spray balls
  • Variable Capacity Lids (with or without lifting arms)
  • Sight Glass
  • Laser Cut sign boards
  • Pump over lines

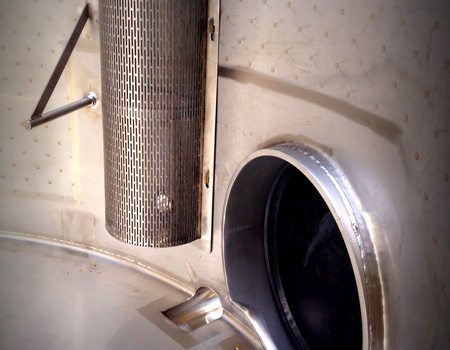

  • Racking Arms

Gaskets

We have a wide range of gaskets for our manways and variable capacity lids available in stock.  If a special gasket is needed we can usually source that as well.  Contact us for more information.


Get Quote
